COVID-19 analyses are all the rage now, with COVID datasets being made publicly available at the city, state, and national level. It’s an awesome example of how open-source data can lead to a better understanding of the world around us. The best part is much of the actual analysis is being done for free! I decided to take a stab it and contribute to the public COVID discourse with my own exploratory analysis.

Talk of COVID-19 “hot spots” is frequent in the news, often referring to NYC since it has the most COVID-19 cases of any city in the US. Beyond looking at simple COVID case tallies, it is not clear how these hot spots are being determined. How do they determine that one area has a statistically significant higher number of cases compared to another? Factors such as population density and COVID numbers of surrounding locations all influence how spatial significance is determined when looking at infection rates by area. Enter Moran’s I, a measure of spatial autocorrelation that can be used to test for clustering, or dispersion, of an outcome on a map. I will show you how to perform and interpret a Moran’s I test by applying it to real COVID data for a selection of US cities.

## Data Sources

For each area you want to test for spatial autocorrelation you will need three main pieces of information.

- Total COVID cases
- Estimated population
- Geometry of the area

### COVID Cases

The most detailed data I could find for COVID infection totals has cases summarized at the zip code level. Here is an example for the state of Illinois. Unfortunately, I did not find a central repository or API that allows you to easily retrieve this data for any geographic location in the US. It appears a city or state will build their own data repository meaning I will need to aggregate the data from multiple sources. For this blog I manually downloaded COVID case data by zip code for Philadelphia, Chicago, and San Francisco.

### Population and Geometry

Finding population and case data was easy thanks to the publicly available Census API and the `tidycensus`

R package. The Census API is quite amazing, with thousands of different statistics available at multiple geographic levels. To make things easier, the `tidycensus`

package is a convenient wrapper for this API that makes pulling data a breeze. `Tidycensus`

also allows you to pull geometric shape files for the area you are querying data for. Adding the geometry to the returned data converts it to an `sf`

object that can be easily visualized using `ggplot2`

. Here is all the code you need to create a heatmap of household income in the US by county.

```
us_county_income <- get_acs(geography = "county", variables = "B19013_001",
shift_geo = TRUE, geometry = TRUE)
ggplot(us_county_income) +
geom_sf(aes(fill = estimate), color = NA) +
coord_sf(datum = NA) +
theme_minimal() +
scale_fill_viridis_c(labels = scales::dollar_format())
```

For my analysis I pulled the total population of each zip code in the US, with its geometry, and did an inner join with my COVID datasets. I end up with a separate `sf`

object for Philadelphia, San Francisco, and Chicago.

`head(phila_covid_sf)`

```
## Simple feature collection with 6 features and 4 fields
## Geometry type: MULTIPOLYGON
## Dimension: XY
## Bounding box: xmin: 478510.5 ymin: 4419279 xmax: 496536.8 ymax: 4435730
## Projected CRS: NAD83 / UTM zone 18N
## # A tibble: 6 x 5
## cases zip pop geometry cases_per_cap
## <dbl> <fct> <dbl> <MULTIPOLYGON [m]> <dbl>
## 1 403 19138 34614 (((485004.9 4433570, 485294.2 4433486, 485492~ 11.6
## 2 171 19122 22690 (((486657.7 4426246, 486771.9 4426228, 486993~ 7.54
## 3 509 19149 59853 (((492066.7 4431838, 492275.7 4432106, 492432~ 8.50
## 4 627 19124 68905 (((489247.9 4429303, 489557.3 4429251, 489974~ 9.10
## 5 739 19143 65812 (((478510.5 4422474, 478711.6 4422840, 478689~ 11.2
## 6 235 19130 26100 (((483562.3 4425076, 483487.3 4425183, 483637~ 9.00
```

## Moran’s I

A Moran’s I test results in a p-value, Moran’s I index, and z-score that can be interpreted as follows:

Moran’s I Output | Interpretation |
---|---|

The p-value is not statistically significant | You cannot reject the null hypothesis. It is quite possible that the spatial distribution of feature values is the result of random spatial processes. The observed spatial pattern of feature values could very well be one of many, many possible version of complete spatial randomness. |

The p-value is statistically significant, and the z-score/Moran’s I index is positive. | You may reject the null hypothesis. The spatial distribution of high values and/or low values in the dataset is more spatially clustered than would be expected if underlying spatial processes were random. |

The p-value is statistically significant, and the z-score/Moran’s I index is negative | You may reject the null hypothesis. The spatial distribution of high values and/or low values in the dataset is more spatially dispersed than would be expected if underlying spatial processes were random. A dispersed spatial pattern often reflects some type of competative process- a feature with a high value repels other features of high values; similarly, a feature with low value repels other features with low values. |

Furthermore, there is a global and local version of the Moran’s I test. A global Moran’s I test produces one set of test statistics that indicates the level of clustering and dispersion in the entire dataset. A local Moran’s I test will produce a set of test statistics for each area grouping specified in the dataset (in this case zip codes) that tell you whether the measurement feature is statistically higher or lower in that area.

## Philadelphia Example

I will start with looking at COVID case numbers in Philadelphia. Combining population and zip code shapefiles from the Census API with COIVD totals web scraped from the city’s data portal allows us to create the following choropleth.

Based on this graph, would you say there are significant COVID outbreak clusters within Philadelphia? The brightest yellow zip code certainly looks like a hot spot, but is the difference statistically significant? Choropleth maps such as this are extremely popular, and often showcased by organizations as examples of their BI capabilities. These visuals look beautiful but drawing conclusions from them with the naked eye can be difficult or, in some cases, downright deceiving. We can take the guesswork out of interpreting a visual like this with Moran’s I.

### Global Moran’s I

We will use the `spdep`

package in R to help perform the Moran’s I test. To take advantage of the robust spatial tests available in `spdep`

, we must use sp objects rather than sf objects. I will convert my sf objects to sp to perform the tests, then tidy the results on the back end using the `broom`

package.

To calculate Moran’s I the spdep function needs to know zip codes’ distances from one another. Feeding an sp object to the `poly2nb()`

function will build a neighbors list based on regions sharing the same boundary. Below visually shows the relationships this function is producing.

```
library(spdep)
## convert philly sf object to sp
phila_sp <- as(phila_covid_sf, "Spatial")
## Create list of neighbors
phila_nb <- poly2nb(phila_sp, queen = T, row.names = phila_sp$zip)
coords <- coordinates(phila_sp)
##Visualize neighbor relationships
plot(phila_sp)
plot(phila_nb, coords = coords, add = T, col = "#F78764")
```

We are now ready to perform the Moran’s I test for spatial autocorrelation. I used the `EBImoran.mc()`

function since we are working with COVID rates based on the population of a specific zip code. This function also automatically performs Monte Carlo simulations for us to compare our observed test statistic against. We must add the number of COVID cases and population for the zip code, as well as a list of weighted objects representing the neighborhood relationships we calculated earlier.

```
## EBI Morans I
set.seed(1988)
phila_moran_mc <- EBImoran.mc(n = phila_sp$cases,
x = phila_sp$pop,
## convert neighbors list to a listw object
listw = nb2listw(phila_nb, style = "W"),
nsim = 9999)
```

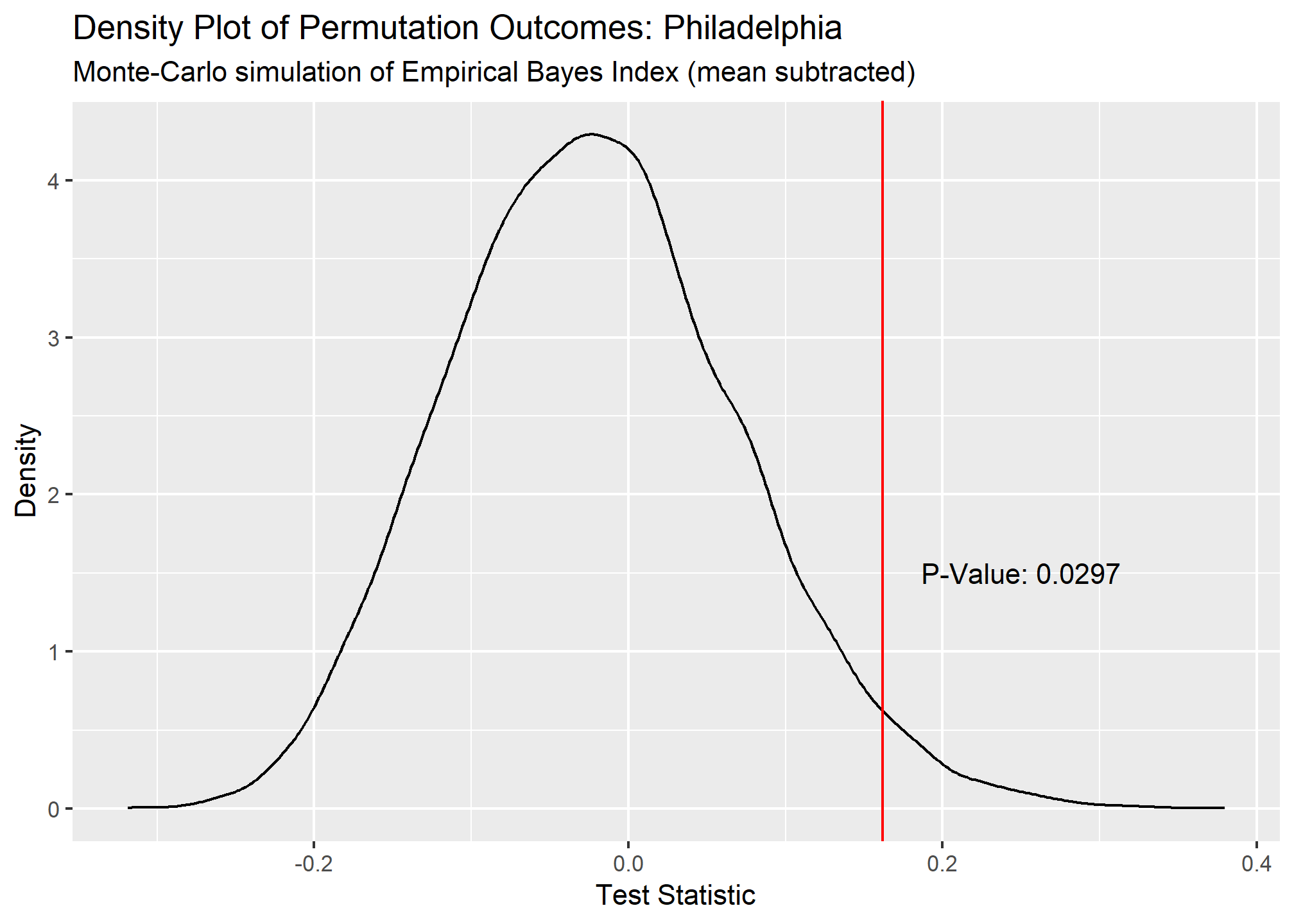

The tidied output of our test shows a significant p-value of .0289 and positive Moran’s I test statistic of .162. This indicates that there is significant clustering of COVID cases in Philadelphia based on the COVID data we have. A density plot of the Monte Carlo permutation outcomes further demonstrates how likely our observed test statistic is.

```
## # A tibble: 1 x 5
## statistic p.value parameter method alternative
## <dbl> <dbl> <dbl> <chr> <chr>
## 1 0.162 0.0289 9711 Monte-Carlo simulation of Empirical B~ greater
```

### Local Moran’s I

Now that we know there is COVID clustering in Philadelphia, lets run a Local Moran’s I test to further investigate. The local version of this test operates much the same as our previous example, except more work is needed to tidy the output since we are generating a greater number of test statistics. There is no “EBI” version of the Local Moran’s test so I fed the COVID per capita rates directly to the `localmoran()`

function.

```
phila_lc_moran <- localmoran(phila_sp$cases_per_cap,
## listw object of neighbors list
listw = nb2listw(phila_nb, style = "W"),
p.adjust.method = "bonferroni",
alternative = "two.sided")
phila_lc_moran_tidy <- phila_lc_moran %>%
as_tibble() %>%
bind_cols(zip = rownames(phila_lc_moran)) %>%
rename(p_value = `Pr(z != 0)`, morans_i = Ii, z_score = Z.Ii) %>%
select(zip, morans_i, z_score, p_value) %>%
mutate(morans_i = as.numeric(round(morans_i,3)),
z_score = as.numeric(round(z_score,3)),
p_value = as.numeric(round(p_value,3)),
lag_cases_per_cap = round(lag.listw(var = phila_sp$cases_per_cap, x = nb2listw(phila_nb, style = "W")),3),
lag_mean = round(mean(lag.listw(var = phila_sp$cases_per_cap, x = nb2listw(phila_nb, style = "W"))),3)
) %>%
arrange(p_value)
```

First 6 results from our Local Moran’s test

`head(phila_lc_moran_tidy)`

```
## # A tibble: 6 x 6
## zip morans_i z_score p_value lag_cases_per_cap lag_mean
## <chr> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 19127 1.63 2.51 0.037 7.10 10.7
## 2 19137 0.969 1.86 0.254 8.50 10.7
## 3 19147 0.72 2.03 0.296 8.36 10.7
## 4 19123 -0.717 -2.08 0.303 7.88 10.7
## 5 19126 0.838 1.61 0.429 11.6 10.7
## 6 19138 0.282 0.752 1 15.7 10.7
```

There is a built in `moran.plot`

function in `spdep`

to visualize how our zip codes compare to each other. This plots a zip code’s COVID cases per capita against the weighted per capita rates of the zip codes around it. The zip codes that are highlighted are those that deviate the most from other zip codes in terms of COVID rates.

When tidying our test output, I calculated the spatially lagged cases per capita (aka weighted cases per capita of neighboring zip codes) for each zip code and the mean spatially lagged cases per capita of all zip codes. We can use these values to determine if a zip code falls within one of the below categories:

**Low-Low**- The area has a low number of cases and is surrounded by other areas with low case totals.**Low-High**- The area has a low number of cases and is surrounded by other areas with high case totals.**High-Low**- The area has a high number of cases and is surrounded by other areas with low case totals.**High-High**- The are has a high number of cases and is surrounded by other areas with high case totals.

Here is my visualization staging code that combined the Local Moran’s I results to the Philadelphia `sf`

object and calculates which category a zipcode falls into.

```
phila_morans_stage <- phila_covid_sf %>%
inner_join(phila_lc_moran_tidy, by = c("zip"="zip")) %>%
mutate(quad = case_when(
cases_per_cap < lag_mean & lag_cases_per_cap < lag_mean ~ "Low-Low",
cases_per_cap < lag_mean & lag_cases_per_cap >= lag_mean ~ "Low-High",
cases_per_cap >= lag_mean & lag_cases_per_cap < lag_mean ~ "High-Low",
cases_per_cap >= lag_mean & lag_cases_per_cap >= lag_mean ~ "High-High"
))
```

The below graph shows Philadelphia and the zip codes with a significant result from Local Moran’s I. I used a high p-value to demonstrate how a visualization would look utilizing the different color-coded categories we discussed. This allows us to quickly see the zip codes with significant p-values and how they compare to their neighbors.

## Functional Programming For Many Locations

If you can run an analysis once, then you can create functions and utilize `purrr`

to run it many times. I decided to pull data from 3 different cities, Chicago, Philadelphia, and San Francisco, and run the same analysis above on all of them. My code for automating this process for many different locations can be found at the bottom.

Here are the popular choropleth graphs for each location showing the COVID cases per capita of zip codes. Which city has the most clustering of COVID cases? Let’s find out!

Our Global Moran’s I test results show all cities have significant clustering of COVID cases. Chicago takes the crown as having the most statistically significant clustering with San Francisco being a close second.

```
## # A tibble: 3 x 6
## city statistic p.value parameter method alternative
## <chr> <dbl> <dbl> <dbl> <chr> <chr>
## 1 San Fran~ 0.494 0.0005 9995 Monte-Carlo simulation of E~ greater
## 2 Philadel~ 0.162 0.0297 9703 Monte-Carlo simulation of E~ greater
## 3 Chicago 0.473 0.0001 10000 Monte-Carlo simulation of E~ greater
```

Our Local Moran plots show that San Francisco’s clustering mostly consists of high COVID density areas surrounding each other on the East side of the city. Philadelphia’s only significant clustering is a zip code with an unusually low number of cases on the West side of the city. Chicago is the tale of two cities, with the lakefront downtown area having a significant clustering of low COVID zip codes and the West side seeing high clustered zip codes.

## Caveats and Considerations

Moran’s I is a great way to statistically prove clustering or dispersion of a spatial features that the naked eye might not find. However, there are major caveats and considerations when performing such a test. In the COVID case, the number of tests being performed in each zip code obviously will influence outcomes. In a perfect analysis we would have appropriate sampling from each zip code to help validate our results. Also, the areas that you wish to compare will affect outcomes. Zip codes are not standard shapes or sizes that perfectly divide a city based on population. Both factors need to be taken into consideration when performing and interpreting a Moran’s I test.

### Funcational Code

```
##Functional Programming version
sf_plot <- function(data, loc) {
data %>%
ggplot() +
geom_sf(aes(fill = cases_per_cap)) +
scale_fill_gradient(low = "#FFF5F0" , high = "#A50F15", name = "Cases Per 1000") +
labs(title = paste0(loc," COVID-19 Cases by Zipcode"))
}
#function to create global moran density plots
global_morans_plot <- function(data, loc){
tibble::enframe(data$res) %>%
ggplot(aes(x = value)) +
geom_line(stat = "density") +
geom_vline(xintercept = data$statistic, col = "red") +
annotate(geom = "text",x = .25, y = 1.5, label = paste0("P-Value: ",data$p.value)) +
labs(title = paste0("Density Plot of Permutation Outcomes: ",loc),
subtitle = "Monte-Carlo simulation of Empirical Bayes Index (mean subtracted)",
x = "Test Statistic",
y = "Density")
}
#function to create tidy local morans tibble
local_morans_tidy <- function(lm, sp, sf){
lm %>%
as_tibble() %>%
bind_cols(zip = rownames(lm)) %>%
rename(p_value = `Pr(z != 0)`, morans_i = Ii, z_score = Z.Ii) %>%
select(zip, morans_i, z_score, p_value) %>%
mutate(morans_i = as.numeric(round(morans_i,3)),
z_score = as.numeric(round(z_score,3)),
p_value = as.numeric(round(p_value,3))) %>%
inner_join(sf, by = c("zip"="zip")) %>%
mutate(lag_cases_per_cap = spdep::lag.listw(var = sp$cases_per_cap, x = spdep::nb2listw(spdep::poly2nb(sp,queen = T))),
lag_mean = mean(lag_cases_per_cap),
quad = case_when(
cases_per_cap < lag_mean & lag_cases_per_cap < lag_mean ~ "Low-Low",
cases_per_cap < lag_mean & lag_cases_per_cap >= lag_mean ~ "Low-High",
cases_per_cap >= lag_mean & lag_cases_per_cap < lag_mean ~ "High-Low",
cases_per_cap >= lag_mean & lag_cases_per_cap >= lag_mean ~ "High-High"
))
}
## Function to create local morans plots
local_morans_plots <- function(lm_tidied, loc){
ggplot() +
geom_sf(data = sf::st_as_sf(lm_tidied)) +
geom_sf(data = sf::st_as_sf(lm_tidied) %>% filter(p_value <= .1), aes(fill = quad)) +
scale_fill_manual(values = c("Low-Low"="#4DAF4A" ,"Low-High"="#377EB8","High-Low"="#FF7F00","High-High"="#E41A1C")) +
labs(title = paste0(loc," Significant COVID-19 Clustering"), x = "", y = "", fill = "")
}
#sombine sf objects into a tibble with nested lists
covid_tibble <- tibble(
location = c("San Francisco", "Philadelphia","Chicago"),
covid_sf = list(sf_covid_sf,
phila_covid_sf,
chi_covid_sf)
)
morans_results <- covid_tibble %>%
##perform global morans I calculation with MC simulations
mutate(
covid_map = map2(covid_sf,location,sf_plot),
covid_sp = map(covid_sf, ~as(., "Spatial")), ##create sp object
global_morans = map(covid_sp, ~ spdep::EBImoran.mc(n = .$cases,
x = .$pop,
listw = spdep::nb2listw(spdep::poly2nb(.,queen = T, row.names = .$zip)),
nsim = 9999)), ##run global morans I test
global_morans_tidied = map(global_morans, broom::tidy), ##Create output plots
global_moran_plots = map2(global_morans,location,global_morans_plot)) %>% #perform local morans I calculations
##Perform local morans I calculations
mutate(
local_morans = map(covid_sp, ~ spdep::localmoran(x = .$cases_per_cap,
listw = spdep::nb2listw(spdep::poly2nb(.,queen = T, row.names = .$zip)),
p.adjust.method = "bonferroni")), ##run local morans I
local_morans_tidied = pmap(list(local_morans, covid_sp, covid_sf), local_morans_tidy), ##tidy the local morans I output
local_morans_plots = map2(local_morans_tidied,location,local_morans_plots) ##Create output plots
)
```
